Tokarilice - OKUMA Multus B400

11.05.2026 u 15:52 | 2007 |

CNC Tokarilica

| 1500 mm | Fransuska | ID oglasa: 52257 | 2 |

Osnovni podaci

Vrsta:	CNC Tokarilica
Marka:	OKUMA
Model:	Multus B400
Godina proizvodnje:	2007
Stanje:	rabljen
Min. udaljenost među šiljcima:	1500 mm
Max. promjer tokarenja:	710 mm
Konus vretena:	JIS A2-8
Ukupna težina:	14000 kg

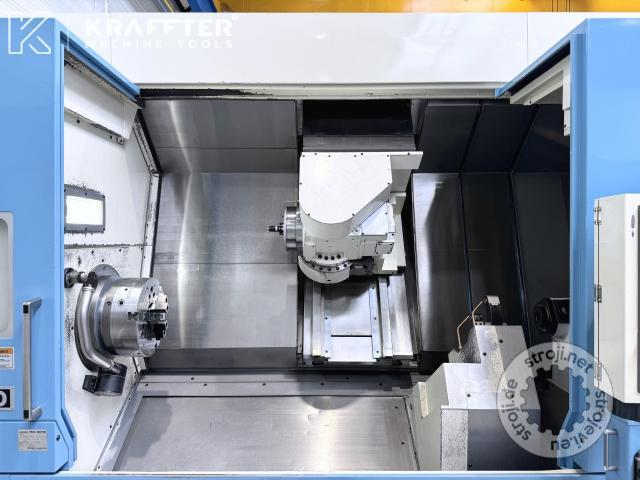

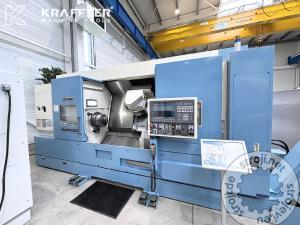

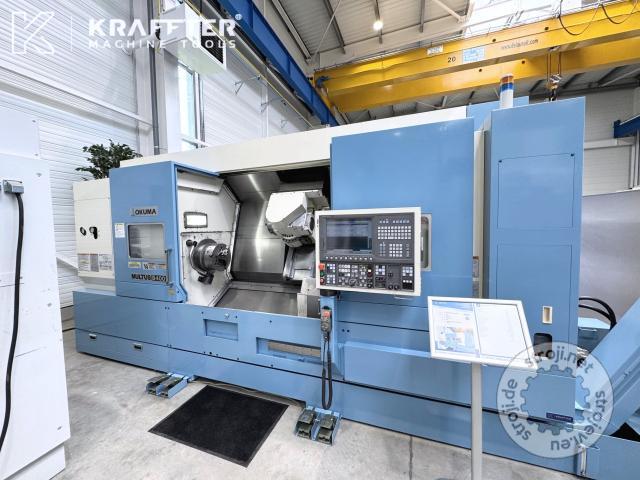

Opis Turn mill center OKUMA Multus B400

TECHNICAL CHARACTERISTICS:

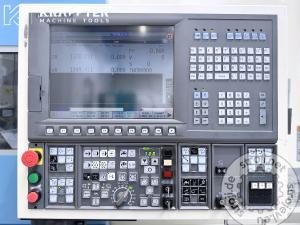

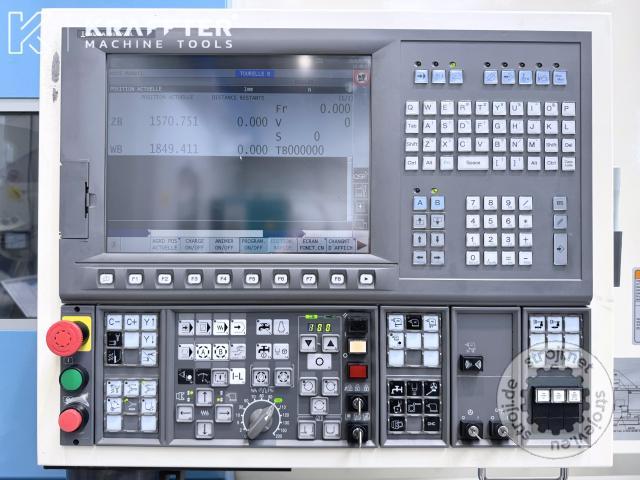

CNC control: OSP-P200L
Distance between centers: 1500 [mm]
Max. cutting diameter: 710 [mm]
Height of centers over cariage: 710 [mm]
Stroke X axis: 690 [mm]
Stroke Y axis: -115 / +115 [mm]
Stroke Z axis: 1545 [mm]
Stroke W axis: 1550 [mm]
B axis indexing precision: 0.001 [°]

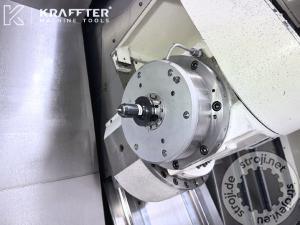

Milling head max. speed: 6000 [rpm]
Max. milling spindle power: 11 [kW]
Max. milling spindle torque: 65.7 [Nm]

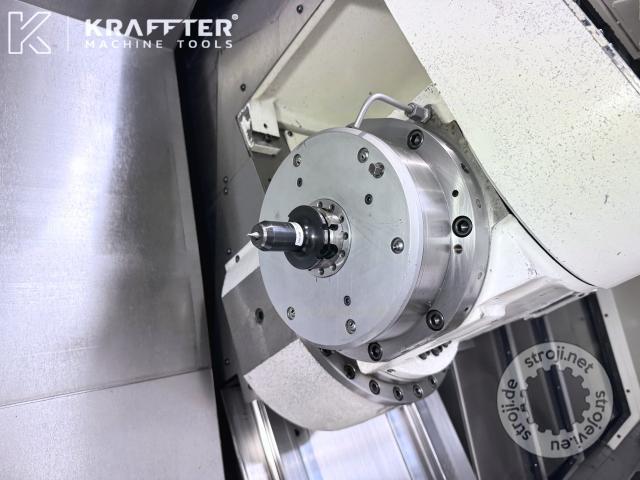

Coolant milling head: HSK-A63
Tool magazine capacity: 40
Max. tool length: 300 [mm]
Max. tool diameter: 130 [mm]
Max. weight of single tool: 10 [Kg]
Rapid traverse rate X axis: 4000 [mm/min]
Rapid traverse rate Z axis: 40000 [mm/min]
Rapid traverse rate Y axis: 26000 [mm/min]
Rapid traverse rate W axis: 12000 [mm/min]
Spindle nose: JIS A2-8
Min. spindle speed: 38 [rpm]
Max. spindle speed: 3800 [rpm]
Increment C-axis: 0.001 [°]
Supply voltage: 400 [V]
Weight: 14000 [Kg]

INCLUDED EQUIPMENT:

1 × One-Touch IGF software option
1 × ATLING 2-point steady rest, type AX8I-NAOS (Ø85–360 mm)

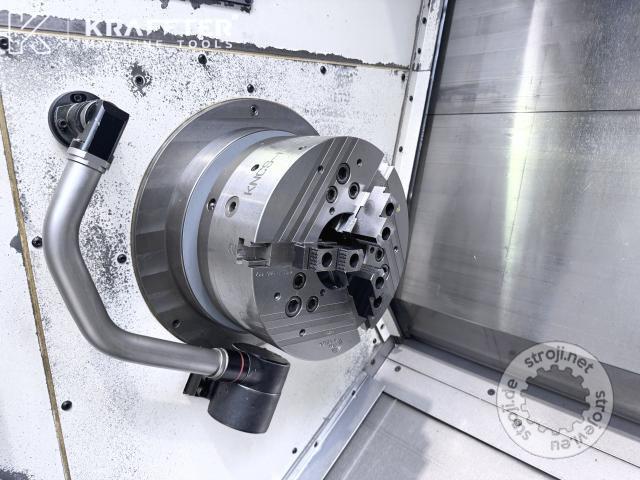

1 × SMW AUTOBLOK 3-jaw chuck Ø340 mm, type KNCS-N-340-117
1 × Chuck clamping pressure regulator
1 × Parts catcher
1 × NC tailstock

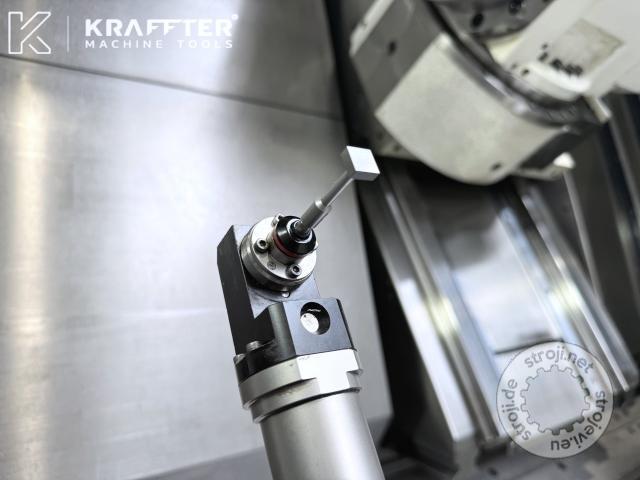

1 × MARPOSS T18 tool probe
1 × Remote electronic handwheel
40 × HSK-63 tool holders
1 × 2-color status signal lamp
1 × Chip conveyor
1 × Coolant tank
1 × Transformer
1 × Complete set of manuals + OKUMA CD

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Cijena

po dogovoru
