Tokarilice - BIGLIA B750-YS

11.05.2026 u 16:24 | 2015 |

CNC Tokarilica

| 680 mm | Fransuska | ID oglasa: 52260 | 2 |

Osnovni podaci

Vrsta:	CNC Tokarilica
Marka:	BIGLIA
Model:	B750-YS
Godina proizvodnje:	2015
Stanje:	rabljen
Max. promjer tokarenja:	680 mm
Glavno vreteno - max. broj okretaja:	3500 o/min
Konus vretena:	ASA 8"
Ukupna težina:	7600 kg

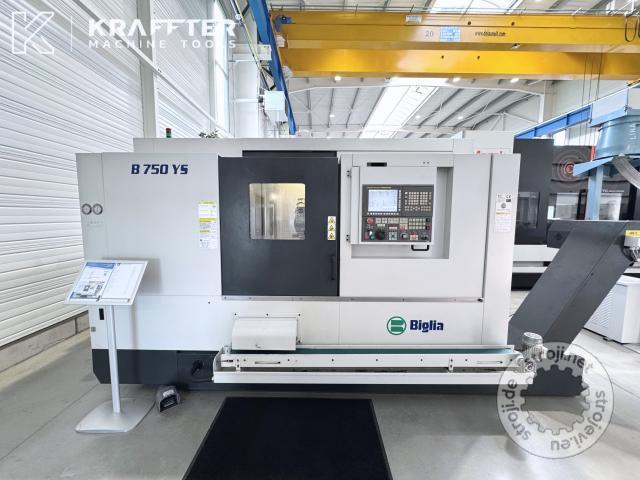

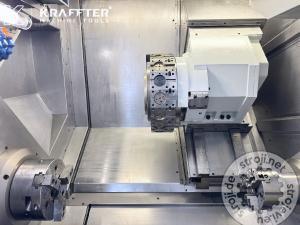

Opis CNC Lathe BIGLIA B750 YS

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2015

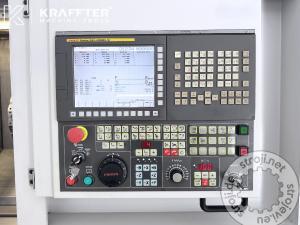

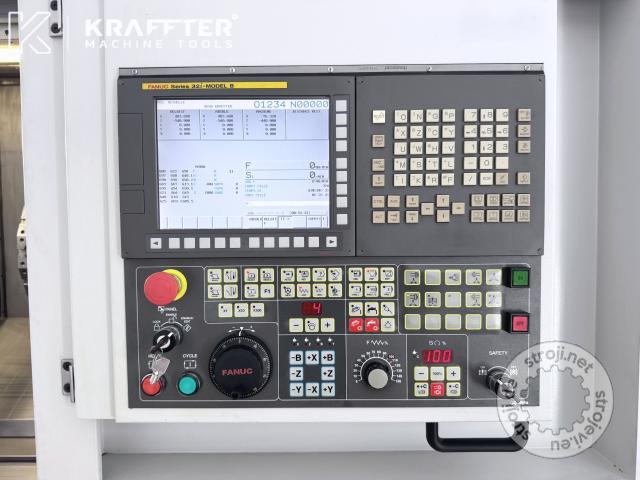

CNC control: FANUC series 32i-B
Max. turning diameter in rotation: 680 [mm]
Stroke X axis: 305 [mm]
Stroke Y axis: 140
Stroke Z axis: 860 [mm]
Rapid traverse rate X axis: 18000 [mm/min]
Rapid traverse rate Z axis: 24000 [mm/min]
Rapid traverse rate Y axis: 7500 [mm/min]
Spindle nose: ASA 8"
Max. bar diameter: 80 [mm]
Spindle throughbore: 91 [mm]
Max. spindle speed: 3500 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 22 [kW]
Spindle torque: 700 [Nm]
Counter spindle nose: ASA 5"
Counter spindle throughbore: 55 [mm]
Counter spindle stroke: 895 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 25 [kW]
Counter spindle torque: 159 [Nm]
Max. tool holder cross-section: 25 x 25 [mm]

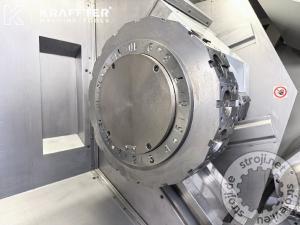

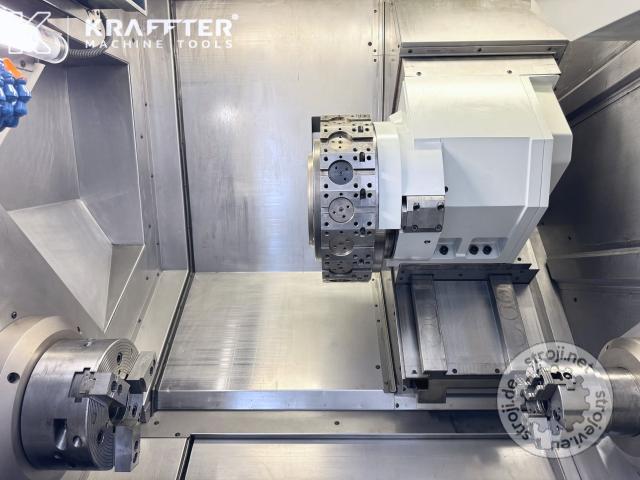

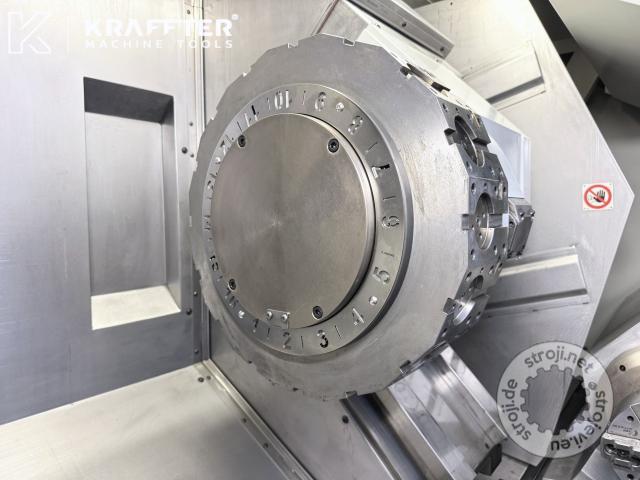

Number of tool stations: 16
Turret indexing time: 0.3 [s/pos]
Number of tool stations driven: 16
Max. speed driven tools: 6000 [rpm]
Live tools power: 17.5 [kW]
Lubrication tank capacity: 300 [l]
Collant pump flow rate: 60 [l/min]
Rated current: 60 [A]
Supply voltage: 400 [V]
Number of cutting hours: 5674 [h]
Dimensions: 5070 x 2030 x 2220 [mm]
Weight: 7600 [Kg]

INCLUDED EQUIPMENT:

1 LNS bar feeder, Quick Load Servo III type
1 three-jaw chuck Ø250 mm
1 three-jaw chuck Ø165 mm

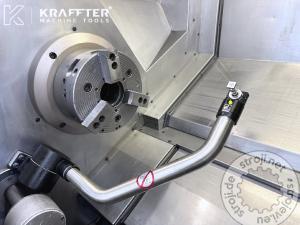

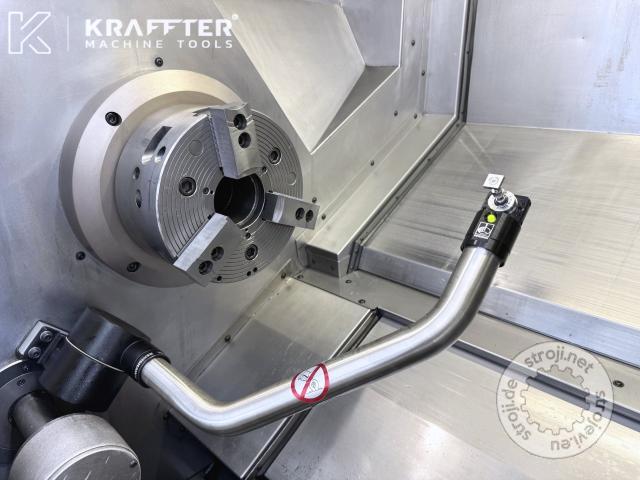

1 automatic RENISHAW tool probe
2 live axial tool holders
1 live radial tool holder
11 static tool holders
1 high-pressure coolant pump (20 bar)
1 chip conveyor
1 parts catcher
1 parts conveyor belt

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
