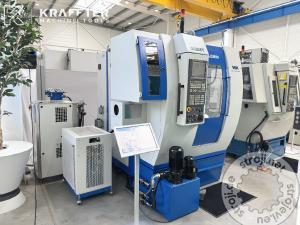

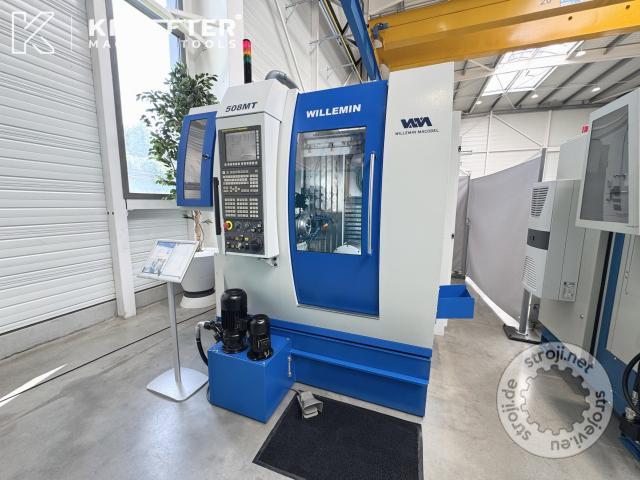

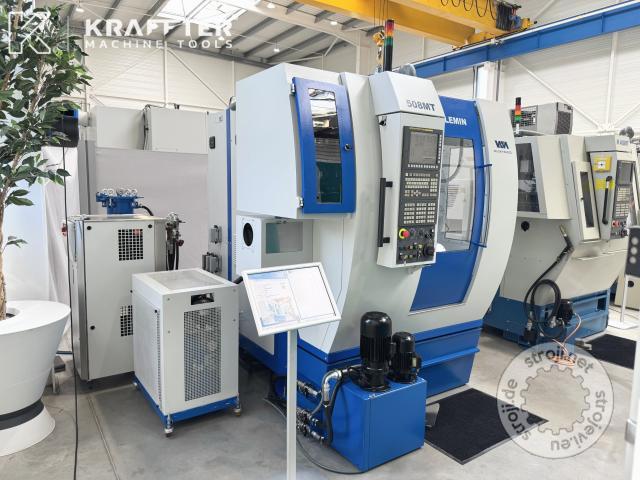

Obradni centri - WILLEMIN MACODEL W 508 MT

27.05.2026 u 15:01 | 2016 |

Univerzalni obradni centar

Osnovni podaci

Vrsta:	Univerzalni obradni centar
Marka:	WILLEMIN MACODEL
Model:	W 508 MT
Godina proizvodnje:	2016
Stanje:	rabljen
Glavno vreteno - max. broj okretaja:	42000 o/min
Maksimalni hod X, Y, Z-osi:	450 x 200 x 425 mm
Ukupna težina:	3300 kg

Opis CNC machining centre WILLEMIN 508MT

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2016

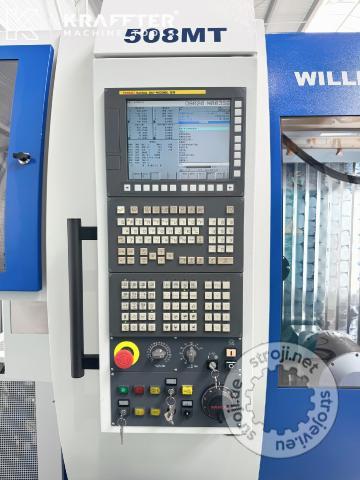

CNC control: FANUC series 31i-B5
Number of simultaneous axes: 5
Stroke X axis: 450 [mm]
Stroke Y axis: 200 [mm]
Stroke Z axis: 425 [mm]
Traversing feeds X, Y and Z axes: 40000 [mm/min]
Axes acceleration: 10 [m/s²]
Max. bar diameter in turning spindle: 42 [mm]
Main spindle max. speed: 6000 [rpm]
Main spindle max. power: 7.5 [kW]
Angular A axis stroke: 360 [°]
Resolution A axis: 0.001 [°]
Drive A axis: Torque-motor
Spindle taper A axis: A2-4"
B axis swivelling stroke: -15 [°] / +100 [°]
Resolution B axis: 0.001 [°]
Drive B axis: Torque-motor
Spindle type: HSK-E40
Max. spindle speed: 42000 [rpm]
Tool changer magazin number of stations: 72
Max. tool lenght: 150 [mm]
Max. tool diameter: 80 [mm]
Tool change time: 1 [sec]
Chip to chip time: 3 [sec]
Lubrication tank capacity: 150 [l]
Collant pump flow rate: 60 [l/min]
Rated current: 50 [A]
Total power required: 35 [kVA]
Supply voltage: 400 [V]
Working hours: 9701 [h]
Machine weight: 3300 [Kg]

INCLUDED EQUIPMENT:

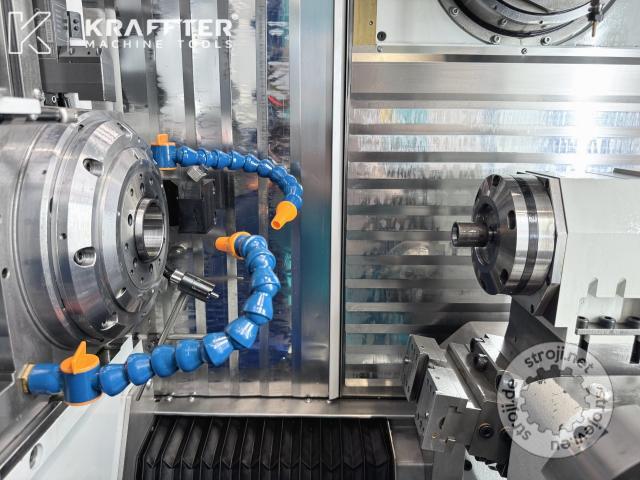

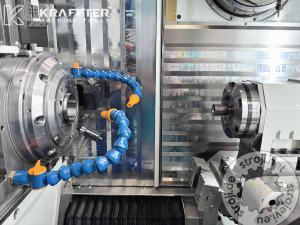

x1 Back working unit with integrated 3-position turret on linear slide
x1 Vise on back working unit
x1 Counter-spindle on back working unit
x1 42,000 rpm spindle with air/oil lubrication
x1 RENISHAW OMP40-2 part probe
x1 BLUM LaserControl NT laser measuring system for tool setting and tool monitoring
x1 DETECTOR FRANCE type 202 tool breakage detection device
x1 A2-4" collet chuck
Set of 58 HSK-E40 tool holders
x1 Self-tightening drill chuck
LNS Super Hydrobar bar feeder, type 6.42 HS 3.2
Various equipment for LNS Super Hydrobar bar feeder
Set of technical manuals
x1 parameter backup system

Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machines similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall, including CNC milling, drilling, and tapping machines, as well as CNC grinding machines.

Cijena

po dogovoru
