Tokarilice - MORI SEIKI NLX2500 SY700

11.07.2026 u 23:25 | 2012 |

CNC Tokarilica

| Napoli, Italija | ID oglasa: 52388 | 69

Osnovni podaci

Vrsta:	CNC Tokarilica
Marka:	MORI SEIKI
Model:	NLX2500 SY700
Godina proizvodnje:	2012
Stanje:	rabljen

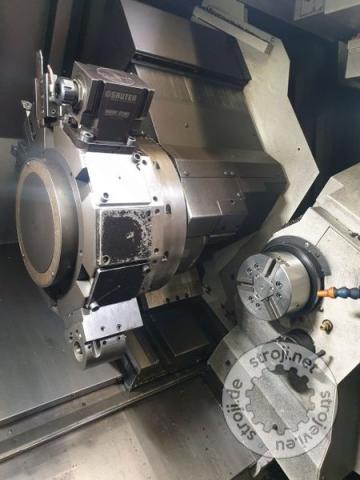

Opis Max Turning Diameter: ~14.4" (366 mm).Max Turning Length: ~27.7" (705 mm).Bar Capacity: 3.15" (80 mm).Travels:X-Axis: 10.2" (260 mm).Y-Axis: \(\pm \) 2.0" (100 mm total).Z-Axis: 31.3" (795 mm).Main Spindle (Left)Max Speed: 4,000 RPM.Motor Power: 25/35 HP (18.5/26 kW).Chuck Size: 10" (250 mm).Spindle Nose: A2-8.Sub-Spindle (Right)Max Speed: 6,000 RPM.Motor Power: 15 HP (11 kW).Spindle Nose: A2-5.Turret & Live ToolingNumber of Stations: 12 (all stations capable of holding live tools).Live Tool Speed: 6,000 RPM (up to 10,000 RPM on some configurations).Live Tool Power: 7.5 HP (5.5 kW).Control & Physical SpecsControl System: Mori Seiki M730BM (with MAPPS IV interface).Machine Weight: Approx. 14,000 lbs (6,360 kg).Floor Space: Approx. 174" x 93" (4,414 x 2,370 mm).

Cijena

22.000 EUR

Prodavač

Luca

80123 Napoli, Italija

	+39 (0) / 3271898712
	+39 (0) / 3271898712

Svi oglasi prodavača
