Obradni centri - FEHLMANN Picomax 56 TOP

09.09.2026 u 13:19 | 2015 |

Verttikalni obradni centar

| 908 mm | Fransuska | ID oglasa: 52518 | 2 |

Osnovni podaci

Vrsta:	Verttikalni obradni centar
Marka:	FEHLMANN
Model:	Picomax 56 TOP
Godina proizvodnje:	2015
Stanje:	rabljen
Dužina radnog stola:	908 mm
Širina obrade:	480 mm
Glavno vreteno - max. broj okretaja:	12000 o/min
Maksimalni hod X, Y, Z-osi:	500 x 400 x 400 mm
Ukupna težina:	3250 kg

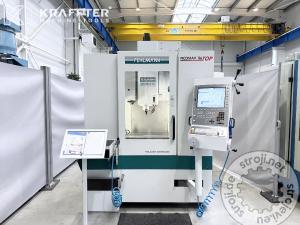

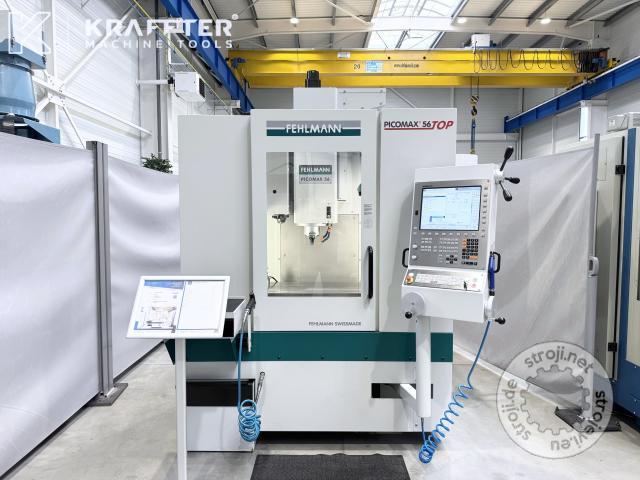

Opis CNC Machining center FEHLMANN Picomax 56 TOP

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2015

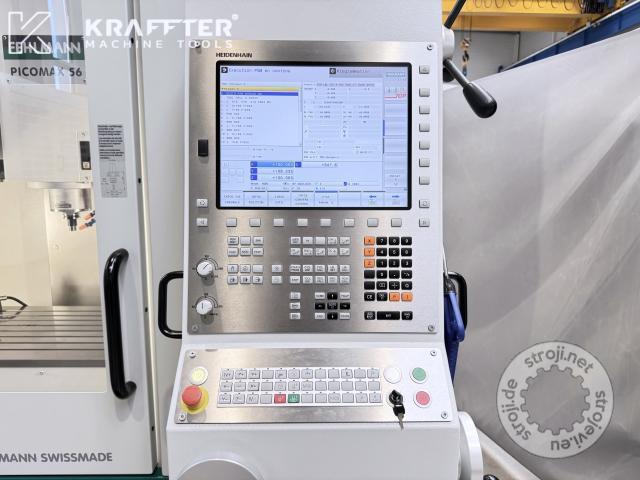

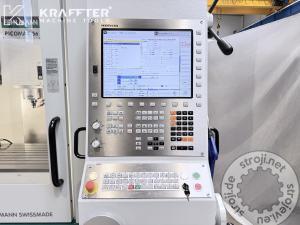

CNC control: HEIDENHAIN TNC 620
Stroke X axis: 500 [mm]
Stroke Y axis: 400 [mm]
Stroke Z axis: 400 [mm]
Feed rate on X, Y and Z axes: 20000 [mm/min]
Min. distance spindle nose / table: 120 [mm]
Max. distance spindle nose / table: 520 [mm]

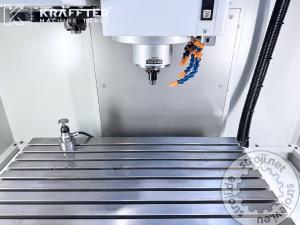

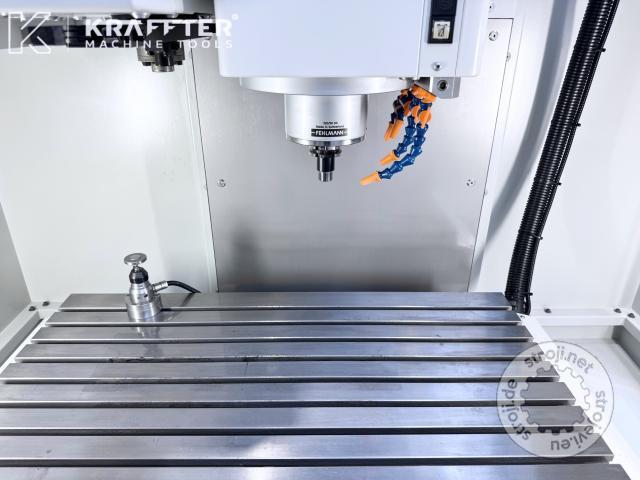

Table dimensions: 908 x 480 [mm]
Max. load on table: 250 [Kg]

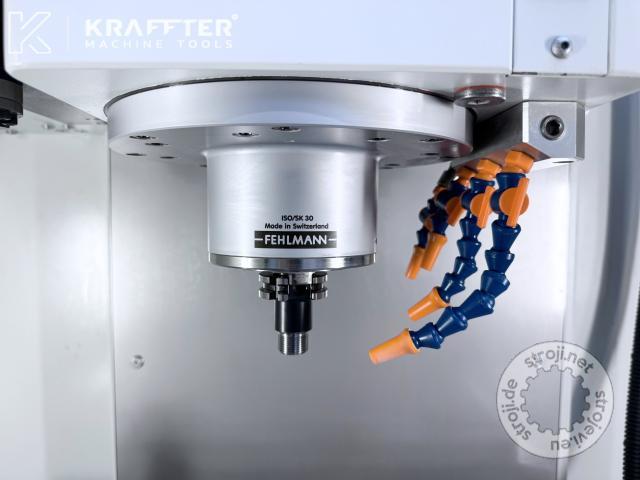

Spindle type: ISO 30
Max. spindle speed: 12000 [rpm]

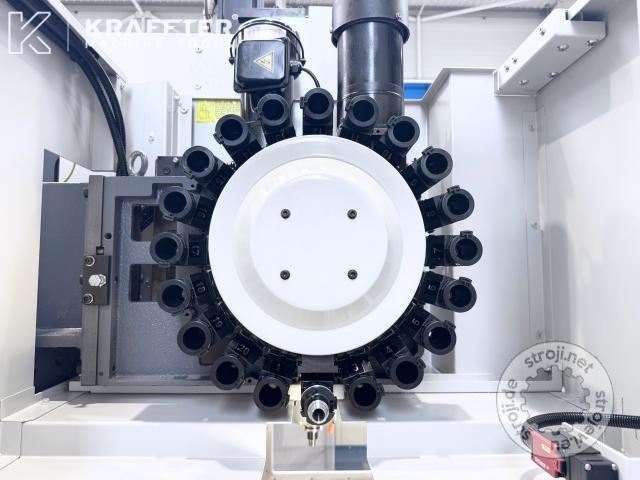

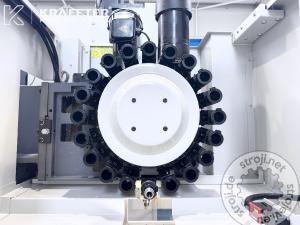

Tool changer magazin number of stations: 20
Max. tool lenght: 240 [mm]
Max. weight of single tool: 3 [Kg]
Max. tool diameter: 130 [mm]
Tool change time: 3 [sec]
Chip to chip time: 8 [sec]
Number of cutting hours: 1463 [h]
Rated current: 25 [A]
Supply voltage: 400 [V]
Machine weight: 3250 [Kg]

INCLUDED EQUIPMENT:

HEIDENHAIN linear glass scales on the X, Y, and Z axes
x1 FRIBOSA Switzerland precision vise
x1 RENISHAW TS 440 part probe
x1 RENISHAW TT 140 tool probe
x3 ISO30 tool holders

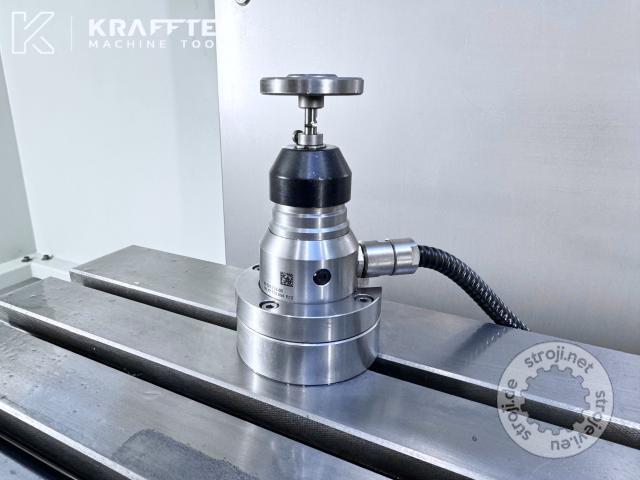

x1 FEHLMANN GPRPLUS50 toolsetter
x1 coolant tank with pumps

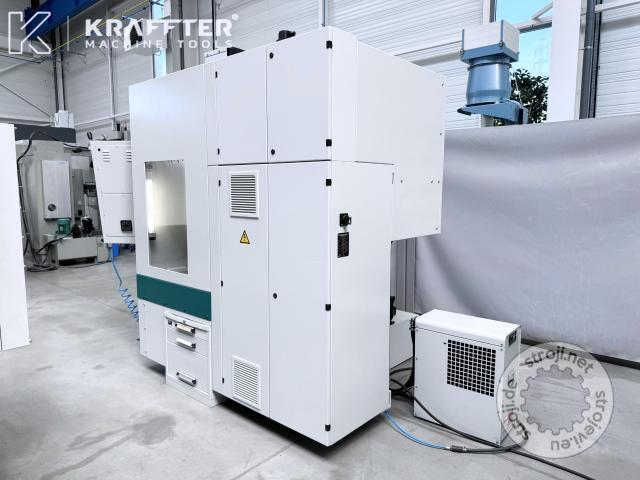

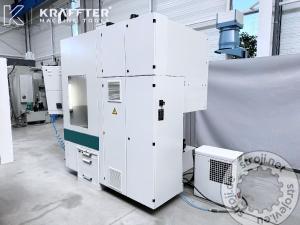

x1 spindle chiller
Various tightening wrenches
Axis locking brackets for machine transport
Technical and operating manuals

Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall machines, as well as milling, drilling and tapping machines, and CNC grinding machines.

Cijena

po dogovoru
