Ostalo - SCHNEEBERGER Gemini DMR

30.09.2026 u 09:46 | 2014 | Fransuska | ID oglasa: 52583 | 2 |

Osnovni podaci

Marka:	SCHNEEBERGER
Model:	Gemini DMR
Godina proizvodnje:	2014
Stanje:	rabljen

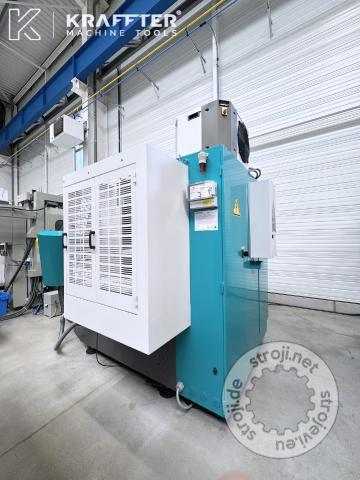

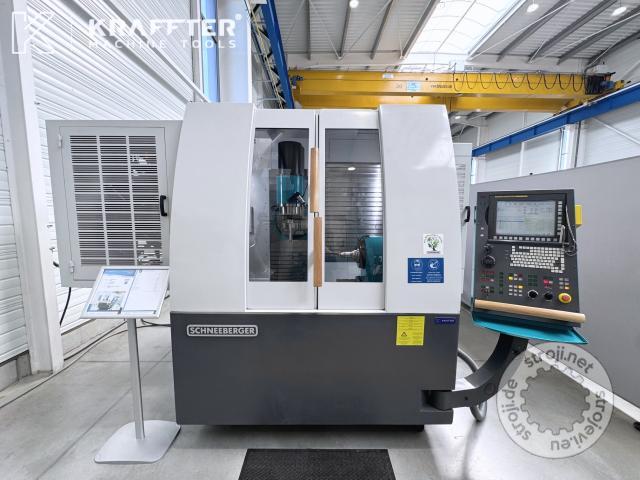

Opis CNC Tool grinding machine SCHNEEBERGER Gemini DMR

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2014

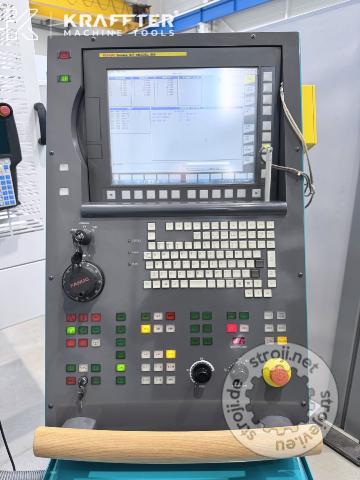

CNC control: FANUC 31i B5
Software installed: Quinto Qg1
Colour touchscreen: Yes
Number of axes: 5
Stroke X axis: 380 [mm]
Max. Stroke speed X axis: 20000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Y axis: 300 [mm]
Max. Stroke speed Y axis: 5000 [mm/min]
Resolution Y axis: 0.0001 [mm]
Stroke Z axis: 280 [mm]
Max. Stroke speed Z axis: 20000 [mm/min]
Resolution Z axis: 0.0001 [mm]

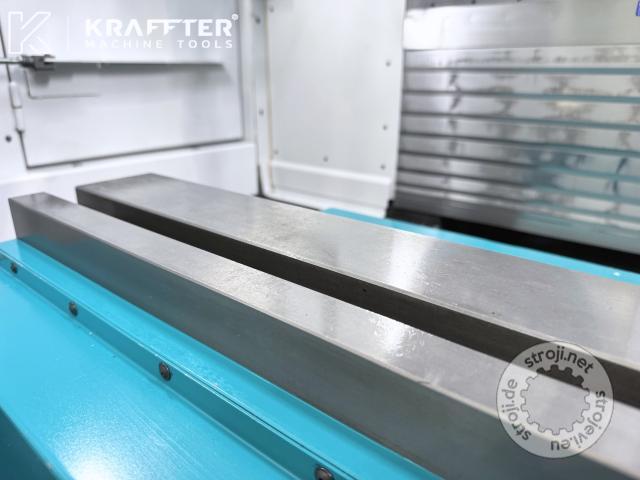

Table length: 500 [mm]
Table width: 330 [mm]

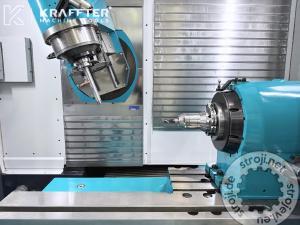

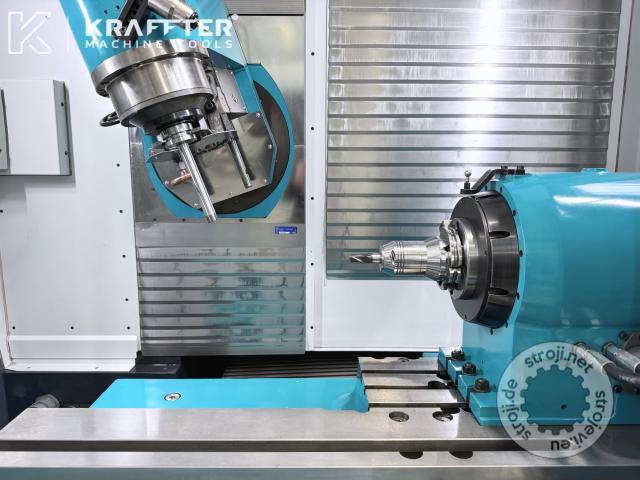

Grinding spindle attachment: HSK-50
Max. grinding wheel speed: 10000 [rpm]
Grinding spindle motor power: 14 [kW]
Max. diameter grinding wheel: 250 [mm]
Internal workpiece spindle nose: ISO 50
Number of running hours: 12340 [h]
Supply voltage: 400 [V]
Rated current: 63 [A]
Weight: 8100 [Kg]

EQUIPMENT INCLUDED:

x1 8-position grinding wheel changer
x8 coolant supports
x1 tool probe

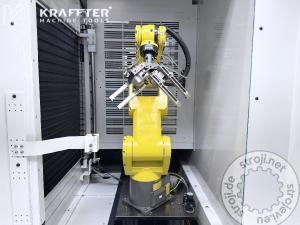

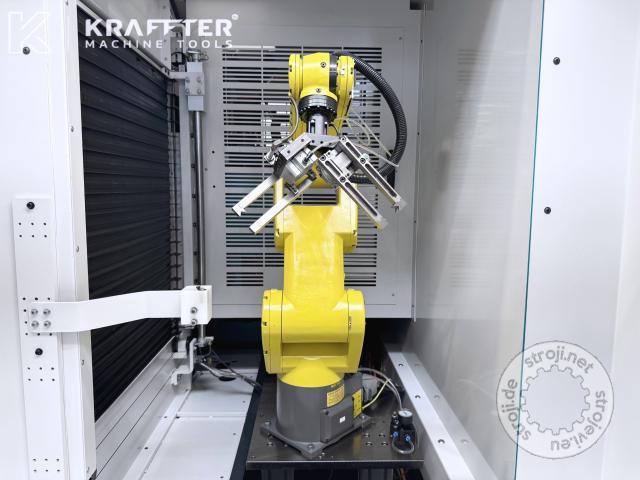

x1 FANUC LR Mate 200iC 5L 6-axis tool-loading robot
x1 set of robot grippers
x1 pallet for robotic tool loading/unloading
x3 HEIDENHAIN linear scales on the X, Y and Z axes

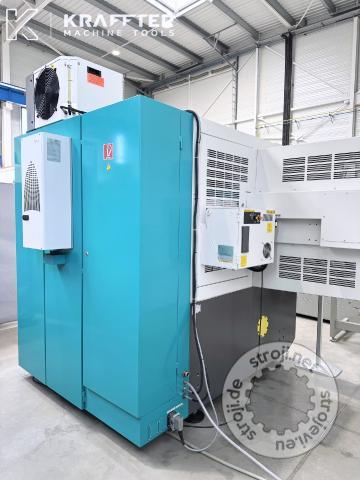

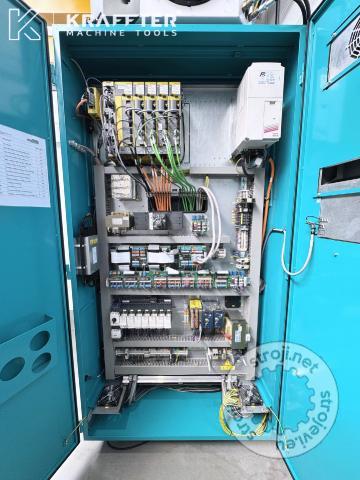

x1 electrical cabinet air-conditioning unit
x1 spindle chiller
x1 fire suppression system (to be inspected by the buyer through a qualified organization)
x1 set of 4 lifting brackets
x1 set of technical manuals
x1 parameter backup on USB flash drive
*The SCHUNK collet holder and the 2 grinding wheel holders shown in the photos are not included

Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machine for sharpening/grinding tools such as milling cutters, taps and drills.
Machines similar to the following brands: Blohm, ELB, Ewag, Favretto, Fenix, GER, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer and Walter.
Also consider cylindrical and surface grinding machines, lathes, machining centres and milling machines.
