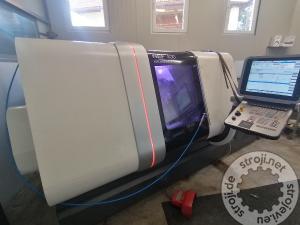

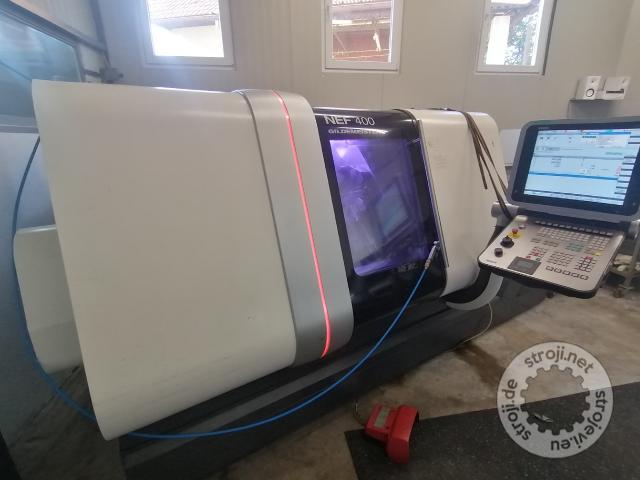

Tokarilice - MORI SEIKI NEF 400

18.08.2021 u 17:27 | 2013 |

CNC Tokarilica

| 805 mm | Slovenija | ID oglasa: 49148 | 1844

Osnovni podaci

Vrsta:	CNC Tokarilica
Marka:	MORI SEIKI
Model:	NEF 400
Godina proizvodnje:	2013
Stanje:	rabljen
Max. udaljenost među šiljcima:	805 mm
Visina šiljaka:	385 mm
Max. promjer tokarenja:	400 mm
Glavno vreteno - max. broj okretaja:	4500 o/min
Konus vretena:	MDI 30
Promjer rupe kroz vreteno:	65 mm
Ukupna težina:	4500 kg
Dimenzija stroja Duž. x Šir. x Viš.:	2900 x 2300 x 1900 mm

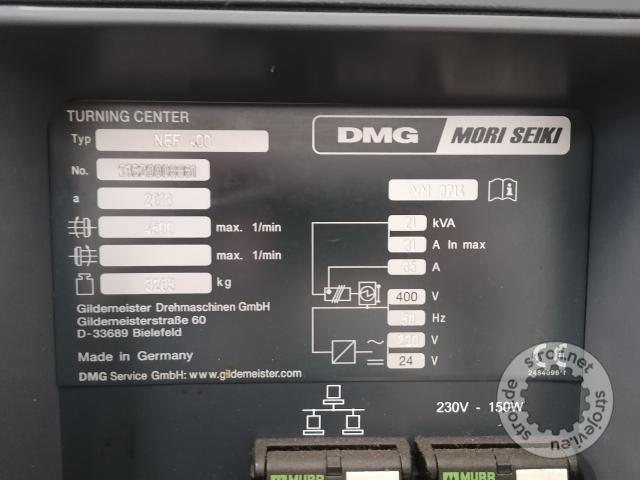

Opis - machine no: 01620008861
- swing diameter over bed: 385 mm
- maximum swing diameter over slide: 350 mm
- distance between centres: 805 mm
- bar passage: 65 mm
- feed force (X / Z-axis S1, 100% ED): 4.5 / 6.2 kN
- feed force (X / Z axis S6, 40% ED): 6/8,5 kN
- tool shank: 20 x 20 mm
- maximum speed of the driven tools: 4,500 rpm

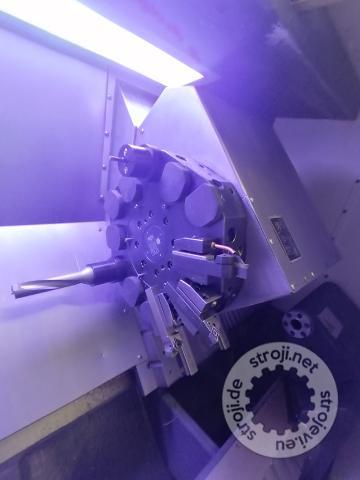

- machine is equipped with a C-axis, a SAUTER tool turret, a

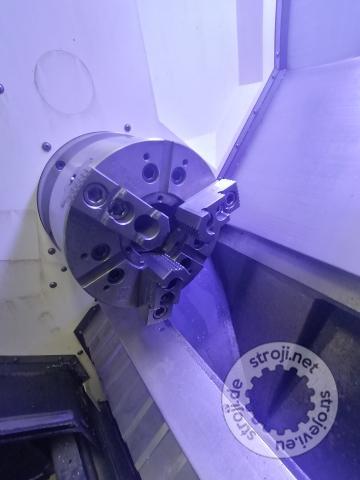

tailstock, a chip conveyor and a three-jaw chuck with spare jaws

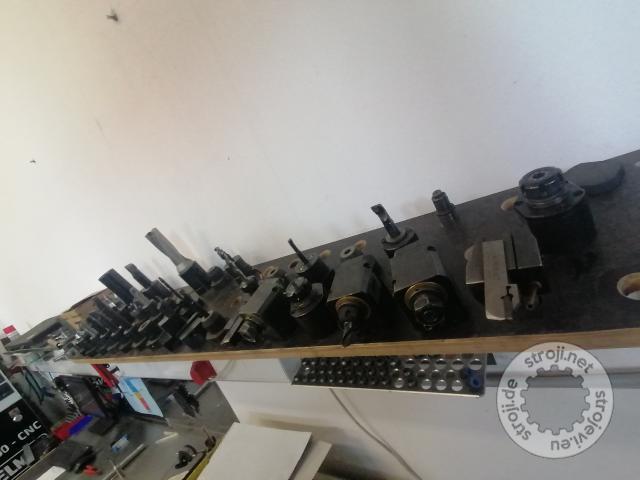

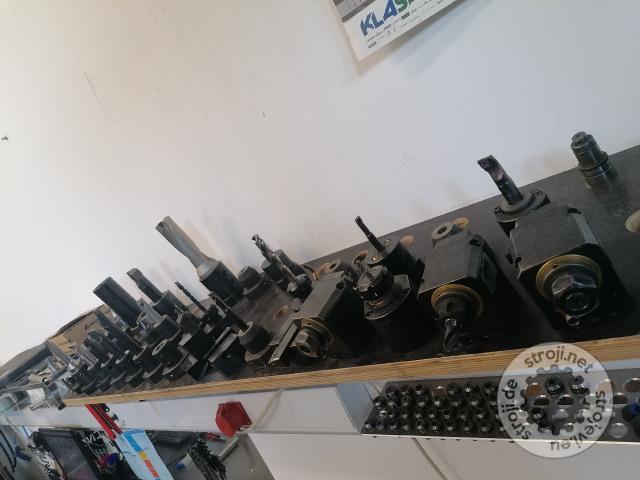

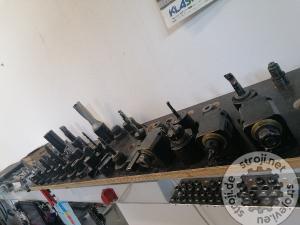

- a tool kit consisting of two EWS axial drilling and milling heads
(ER 25, driven), two EWS radial drilling and milling heads (ER 25,
driven) as well as various rotary steel holders (20 x 20 mm) and
boring bar shanks is included!
- including documentation and data backup
WITH A LOT OF TOOL INCLOODED.

Cijena

55.000 EUR
